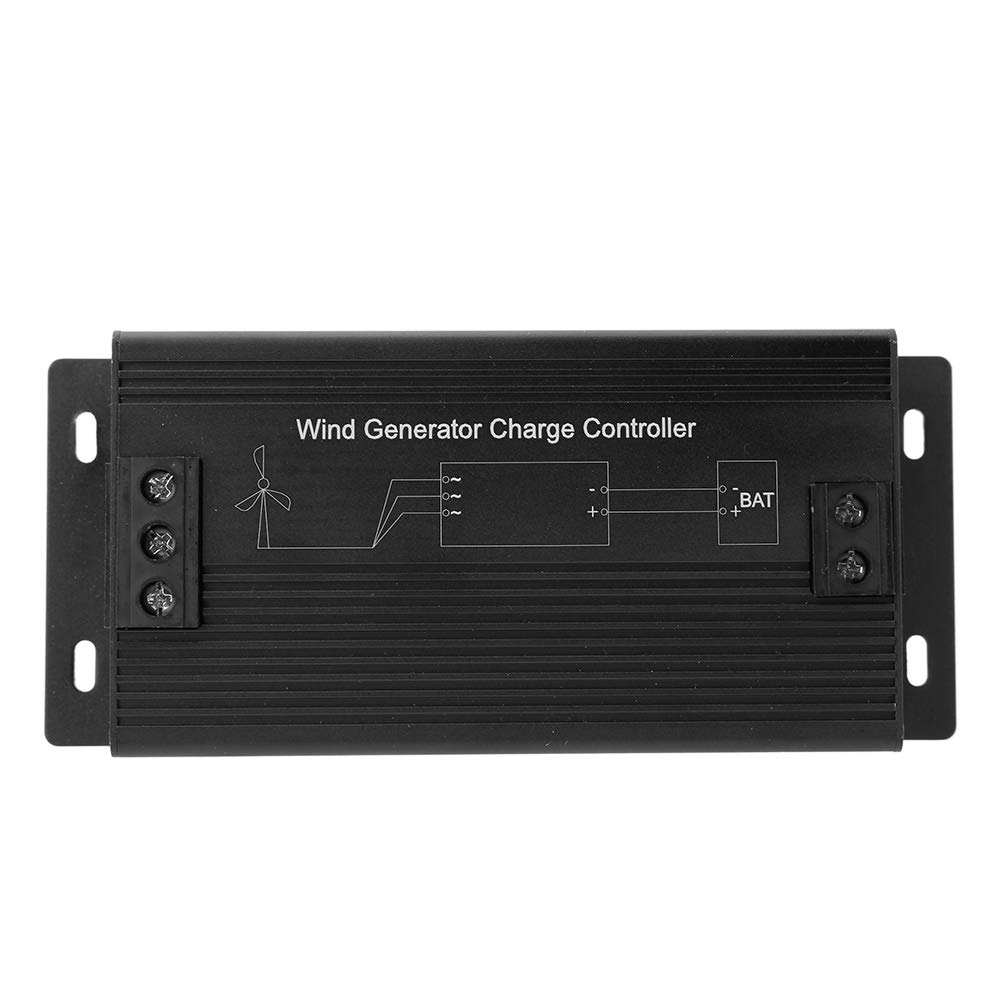

BORDSTRACT 12V/24V/48V Wind Turbine Generator Charge Controller 400W-1000W for Fishing Boats, Street Lamps & Home Monitoring - Perfect for Off-Grid Power, Marine & Outdoor Lighting Applications

Features: 1. It has overcharge, overdischarge and overload protection. 2. The battery has the functions of power-off, lightn protection, brake protection and anti-reverse charging. 3. User programmable.Including transmission voltage points, boost points and other parameters. 4. Suitable for: fishing boat, street lamp, home, monitoring, small mobile base station, etc. 5. Improved three-stage charging algorithm to effectively prevent battery uneven and vulcanization phenomenon and improve battery life. 6. The breeze starts, solves the fan dormant state under the low wind speeds. Specification: Condition: 100% Brand New Rated Voltage: 12V / 24V / 48V Rated Power: 400W / 800W / 1000W Battery Protection: 15V / 29V / 58V Temperature Compensation: 8mV / ℃ / 2V (adjustable) -20 ~ 65 ℃ Working Temperature: -20 ~ + 55℃ 35 ~ 95% RH (no dew) Storage Temperature: -30 ~ + 65℃ Use Elevation: ≤ 5500M Size: Approx. 18.1 * 7.7 * 5cm / 7.13 * 3.03 * 1.97in Weight: Approx. 464g / 16.4 oz Installation: 1. It's the battery's positive and negative electrode interface. 2. Green LED indicator lights up when the system is working properly. 3. The red LED indicator lights up when the battery is full or the controller is in emergency braking mode. 4. The emergency switch, the switch is in the "one", the system is in the emergency braking state, the red LED will be lit at the same time, is in the "0" state, the controller is in the normal working state. 5. The wind turbines terminal can be connected to the wind turbines three lines in turn. If it is a direct current fan or a single fan, the fan line can be arbitrarily connected to two of the three terminals. The controller is compatible with three-phase, single-phase and DC fan on the market. Package list: 1 * Wind Turbines Controller

Wind turbines charge controller: The wind turbines charge controller has overcharge, overdischarge and overload protection, small size,good for heat dissipation. Priority wind-generation power,lack of energy when the mains supplement

Light protection: The battery has power cut, light protection, brake protection and anti-recharge functions, Anti-water,Anti-dust Shell Make It Applicable In Various Outdoor Environment

User programmable: including parameters such as transmission voltage point and boost point, High quality technical components guarantee Its Stability And Reliability

Great for: All off-grid installations on vehicles or boats (caravan, motorhome, campervan, boat, yacht) or any other off-gri

Three-stage charging algorithm: Improved three-stage charging algorithm, effectively preventing battery unevenness and vulcanization, and improving battery life, make sure safety of generator
